Noise Control
Solution Overview
The Silent & Low-Noise Generator Solution addresses the acoustic challenges of operating generators in noise-sensitive environments. The solution combines acoustic enclosures, anti-vibration mounting, exhaust silencers, room treatment, and generator selection to achieve target noise levels. Typical targets range from 65 dB(A) at 1m for standard canopy generators to below 50 dB(A) for super-silent configurations.
Design Considerations
Key Engineering Challenges
Noise Source Identification
Generator noise comes from engine combustion, exhaust, cooling fan, alternator, and structure-borne vibration. Each source requires different treatment.
Acoustic Enclosure Design
Enclosure must provide adequate sound attenuation while allowing sufficient airflow for cooling. Acoustic lining, sealing, and panel design are critical.
Exhaust Noise Control
Exhaust noise is a major contributor. Industrial silencers, flexible connections, and proper routing reduce exhaust noise transmission.
Vibration Isolation
Anti-vibration mounts isolate structure-borne noise. Spring isolators or rubber mounts prevent vibration transmission to building structure.
Airflow Management
Acoustic baffles on air inlet and outlet maintain airflow while attenuating noise. Duct silencers may be required for ducted installations.
Regulatory Compliance
Local noise regulations define maximum permitted levels at property boundaries. Acoustic design must meet or exceed these requirements.
Component Overview

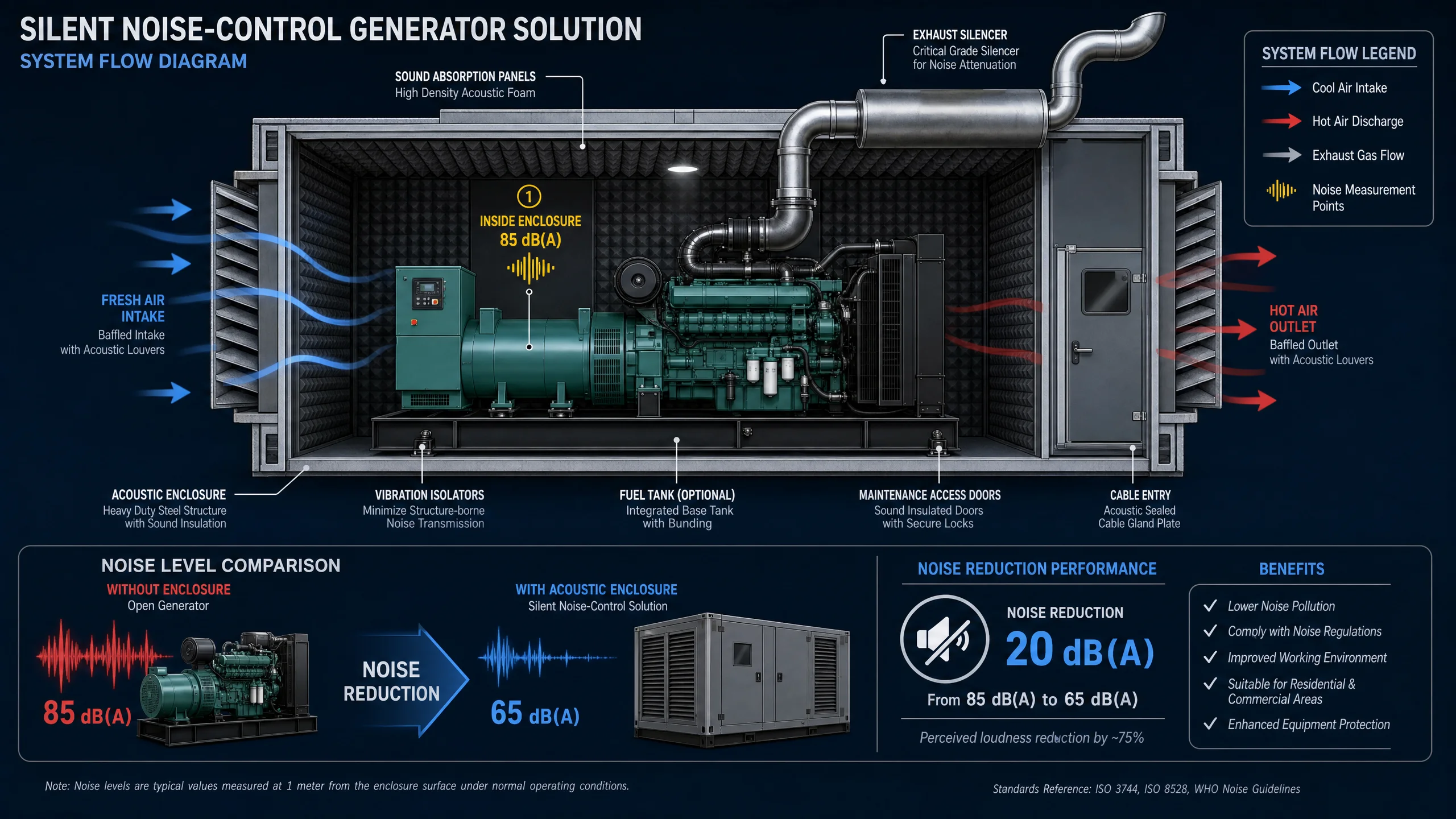

System Architecture
A complete noise control solution for generators integrates acoustic enclosures, anti-vibration mounts, exhaust silencers, inlet/outlet baffles, and room acoustic treatment.
01
Acoustic Canopy/Enclosure
Steel or composite enclosure with acoustic lining, sealed panels, and integrated ventilation to reduce radiated noise.
02
Anti-Vibration Mounts
Spring or rubber isolators between generator base and floor/skid to prevent structure-borne vibration transmission.
03
Industrial Exhaust Silencer
Reactive or absorptive silencer on exhaust system to reduce exhaust noise by 20-40 dB(A).
04
Acoustic Inlet/Outlet Baffles
Lined duct sections or splitter baffles on air inlet and outlet openings to attenuate airborne noise.
05
Flexible Connections
Flexible exhaust bellows and anti-vibration pipe connections prevent vibration transmission through piping.
06
Room Acoustic Treatment
Acoustic panels, floating floor, and sealed penetrations in generator room to contain noise within the room.
Application Contexts
Deployment Scenarios
Urban Commercial Buildings
Office buildings, hotels, and retail centers in urban areas require generators that comply with strict municipal noise ordinances.
Hospitals & Healthcare
Patient care areas require very low noise levels. Super-silent generators with comprehensive acoustic treatment are essential.
Schools & Universities
Educational facilities need quiet backup power that does not disrupt classes or examinations during generator operation.
Residential Developments
Apartment buildings and residential complexes require generators that meet residential noise standards at property boundaries.
Project Workflow
Implementation Steps
1
Noise Assessment & Target Setting
Measure ambient noise levels, identify sensitive receptors, determine target noise levels at property boundaries.
2
Acoustic Design
Design enclosure, silencer, mounts, and room treatment to achieve target noise levels. Perform acoustic modeling.
3
Generator & Component Selection
Select generator with lowest base noise level. Specify acoustic canopy, silencer grade, and mount type.
4
Installation & Verification
Install generator with all acoustic components. Verify all seals, connections, and acoustic treatments are correctly installed.
5
Noise Measurement & Compliance
Conduct noise measurements at property boundaries and sensitive receptors. Document compliance with local regulations.
Product Categories
Recommended Products
Super-Silent Generator Sets
Generators with factory-fitted acoustic canopies achieving 65-75 dB(A) at 1m or below 50 dB(A) for super-silent models.
Acoustic Enclosures
Custom-built acoustic enclosures for existing generators, designed to achieve specific noise reduction targets.
Industrial Exhaust Silencers
Reactive and absorptive silencers for generator exhaust systems with 20-40 dB(A) noise reduction.
Anti-Vibration Mounting Systems
Spring and rubber anti-vibration mounts for generator bases and exhaust systems.
