Parallel Power
Solution Overview
Parallel Generator Systems connect two or more generators to operate simultaneously, sharing the total load. This approach provides scalable capacity, N+1 redundancy, and the ability to add or remove generators based on load demand. Paralleling requires synchronization of voltage, frequency, and phase angle before connecting generators to the common bus.
Design Considerations
Key Engineering Challenges
Synchronization Requirements
Generators must match voltage, frequency, and phase angle before paralleling. Synchronizing panels automate this process.
Load Sharing Accuracy
All paralleled generators must share load proportionally to their ratings. Droop control or isochronous load sharing required.
Protection Coordination
Reverse power, overcurrent, and differential protection must be correctly set to prevent damage during fault conditions.
Harmonic Management
Non-linear loads can cause harmonic distortion. Generators must be rated for harmonic loads or filters installed.
Bus Design
Main bus, tie breakers, and distribution must be rated for combined generator capacity with appropriate fault current ratings.
Control System Integration
Master controller must manage all generators, load sharing, alarms, and automatic start/stop sequences.
Component Overview
System Architecture

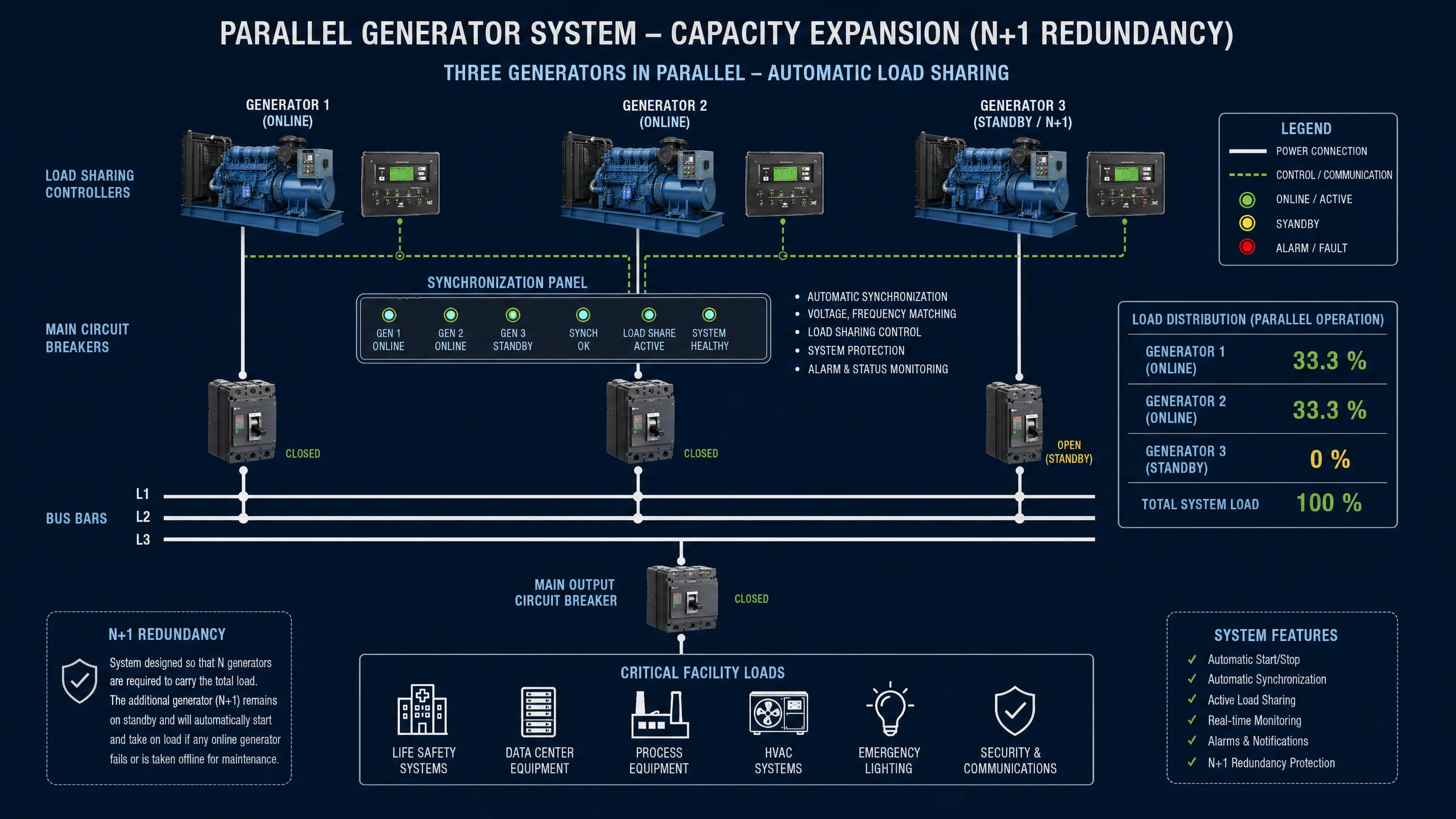

A parallel generator system includes multiple generator sets, a synchronizing and load sharing panel, main bus, protection relays, and a master control system.
01
Multiple Generator Sets
Two or more generator sets rated for parallel operation. Each must have compatible voltage, frequency, and control interfaces.
02
Synchronizing Panel
Automatically synchronizes generators before paralleling. Monitors voltage, frequency, and phase angle.
03
Load Sharing Controller
Ensures each generator carries its proportional share of the total load. Prevents overloading of individual units.
04
Main Bus & Protection
Common bus bar with circuit breakers, reverse power relays, and overcurrent protection for each generator.
05
Master Control System
Manages automatic start/stop of generators based on load demand, schedules maintenance runs, and logs data.
06
Monitoring & SCADA
Real-time monitoring of all generators, load distribution, fuel levels, and system alarms.
Application Contexts
Deployment Scenarios
Large Commercial Buildings
Shopping malls, office towers, and convention centers require scalable backup power with N+1 redundancy.
Data Centers
Critical IT facilities require N+1 or 2N generator redundancy with automatic load transfer and no single point of failure.
Industrial Plants
Manufacturing facilities with large process loads benefit from parallel generators for capacity scaling and maintenance flexibility.
Hospitals & Critical Care
Healthcare facilities require redundant generator systems with automatic transfer and the ability to maintain power during any single generator failure.
Project Workflow
Implementation Steps
1
Load Analysis & Redundancy Planning
Determine total load, peak demand, and redundancy requirements. Define N+1 or 2N configuration.
2
Generator Selection & Sizing
Select generators of equal or compatible ratings. Verify parallel operation compatibility with manufacturer.
3
Synchronizing Panel Design
Design synchronizing and load sharing panel with protection relays, bus bars, and control interfaces.
4
Installation & Wiring
Install generators, connect to bus, wire protection and control systems. Verify all connections and settings.
5
Commissioning & Testing
Test synchronization, load sharing, protection functions, and automatic sequences. Document all settings.
Product Categories
Recommended Products
Parallel-Ready Generator Sets
Generator sets with built-in synchronizing capability and compatible control interfaces for parallel operation.
Synchronizing Panels
Automatic synchronizing and load sharing panels for multi-generator parallel systems.
Protection Relays
Reverse power, overcurrent, and differential protection relays for parallel generator systems.
Master Control Systems
PLC-based master controllers for automatic management of parallel generator systems.
