Solution Overview
The Hybrid Solar-Generator System combines solar photovoltaic generation, battery energy storage, and a diesel generator into an integrated power system. The solar and battery system handles daytime and low-load periods, while the generator provides backup during extended cloudy periods or high-demand events. A hybrid controller manages the energy flow between all sources to minimize generator runtime and fuel consumption.
Design Considerations
Key Engineering Challenges
Solar-Generator Coordination
The hybrid controller must seamlessly manage transitions between solar, battery, and generator power without load interruption.
Battery Sizing
Battery capacity must bridge solar gaps and generator start delays. Oversizing increases cost; undersizing causes frequent generator starts.
Generator Minimum Load
Diesel generators should not run below 30% load for extended periods (wet stacking). Hybrid control must manage minimum loading.
Solar Resource Assessment
Accurate solar irradiance data is essential for correct PV array sizing and realistic energy yield predictions.
System Integration
Inverters, charge controllers, generators, and monitoring must be compatible and correctly configured for reliable hybrid operation.
Maintenance Planning
Solar panels, batteries, and generators all require different maintenance schedules. Integrated monitoring simplifies management.
Component Overview
System Architecture

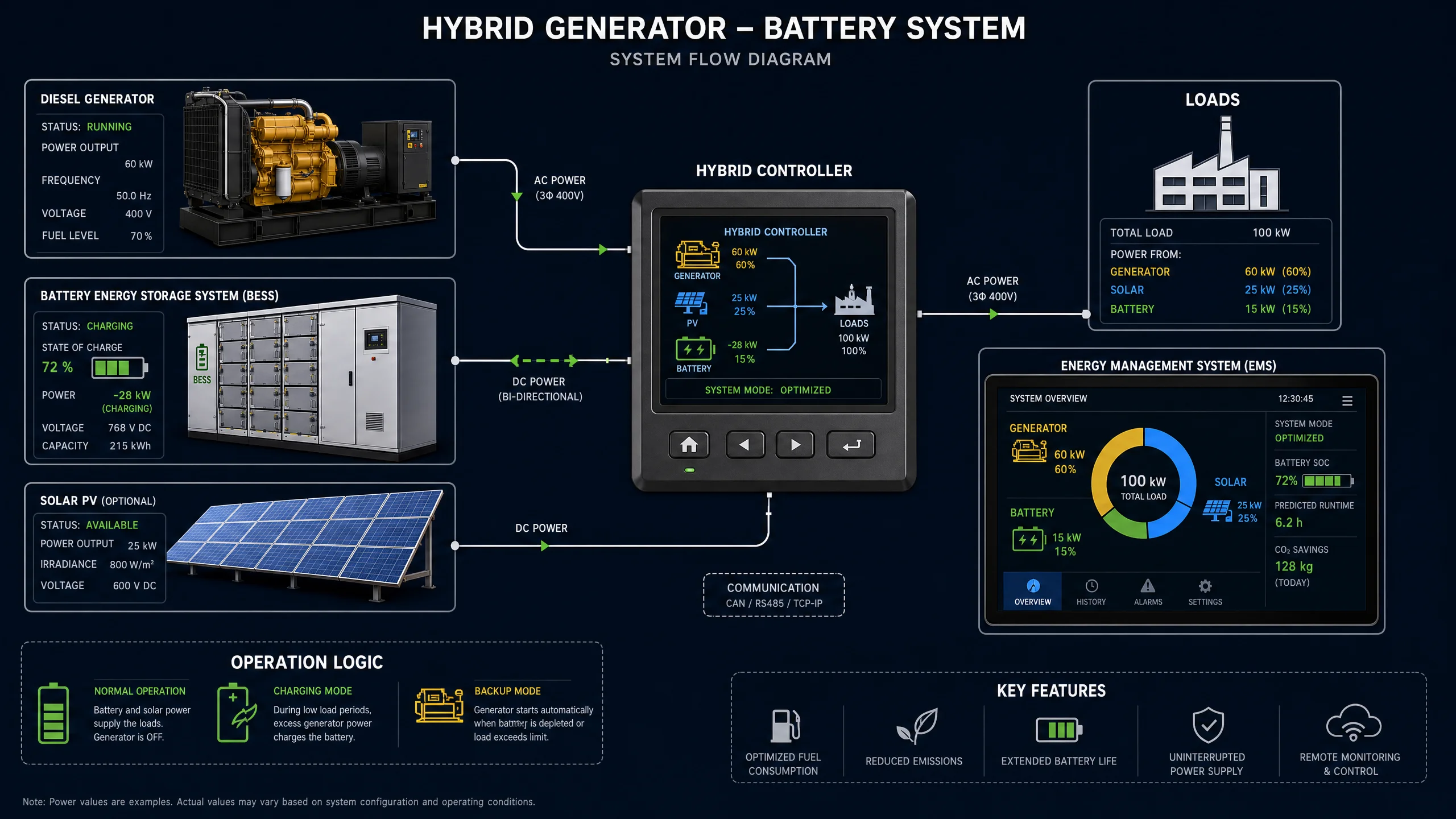

A hybrid solar-generator system integrates solar PV arrays, battery storage, a diesel generator, a hybrid inverter/controller, and monitoring into a unified power system.
01
Solar PV Array
Photovoltaic panels sized for site solar resource and load profile. Mounted on rooftop, ground, or carport structures.
02
Battery Energy Storage
Lithium or lead-acid battery bank for storing solar energy and bridging generator start delays.
03
Hybrid Inverter/Controller
Manages energy flow between solar, battery, generator, and loads. Controls generator start/stop based on battery state and load.
04
Diesel Generator
Backup generator that runs when solar and battery cannot meet load demand. Sized for peak load and battery charging.
05
Solar Charge Controller
MPPT charge controller optimizes solar energy harvest and manages battery charging from PV array.
06
Energy Management System
Monitors and optimizes energy flow, logs performance data, and provides remote access for system management.
Application Contexts
Deployment Scenarios
Remote Resorts & Eco-Lodges
Hybrid systems reduce generator runtime and fuel costs while maintaining reliable power for guest facilities.
Telecom & Communication Sites
Solar-battery-generator hybrid extends battery backup and reduces fuel consumption at remote tower sites.
Agricultural & Irrigation Systems
Solar-powered irrigation with generator backup ensures water supply during extended cloudy periods.
Remote Industrial Facilities
Mining camps, construction sites, and remote processing facilities benefit from reduced fuel logistics costs.
Project Workflow
Implementation Steps
1
Solar Resource & Load Analysis
Collect solar irradiance data, analyze load profile, determine solar fraction target and battery autonomy requirements.
2
System Sizing & Design
Size PV array, battery bank, and generator. Select hybrid inverter/controller. Design mounting, wiring, and protection.
3
Installation & Integration
Install PV array, battery system, and generator. Connect to hybrid controller. Configure energy management parameters.
4
Commissioning & Testing
Test all operating modes: solar-only, battery-only, generator-only, and hybrid. Verify automatic transitions and protections.
5
Monitoring & Optimization
Monitor system performance, optimize control parameters, schedule maintenance for all components.
