Room Design
Solution Overview

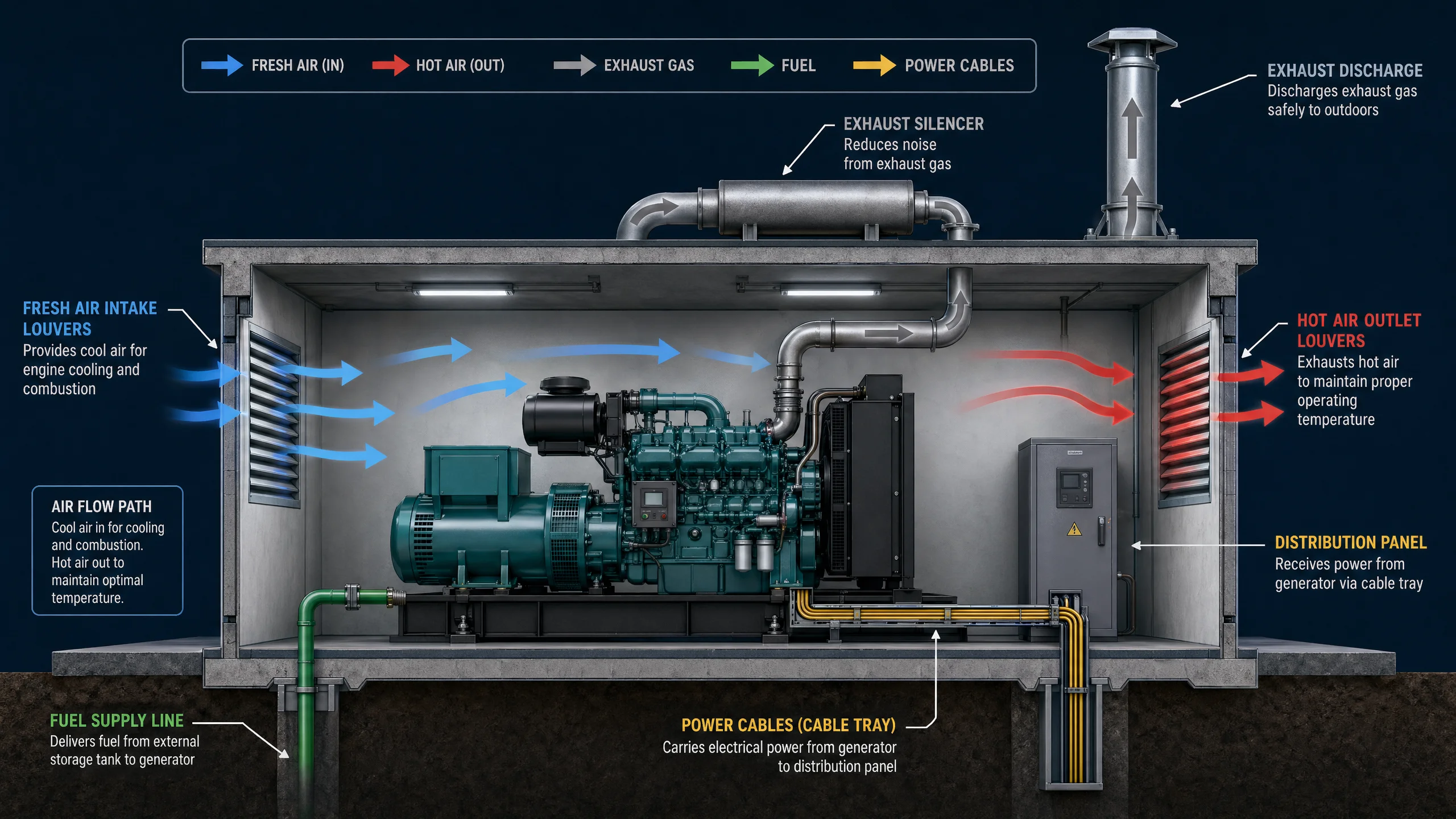

Generator Room Design & Installation covers all aspects of creating a safe, compliant, and functional generator installation. A properly designed generator room protects the generator from environmental factors, contains noise and exhaust, provides safe access for maintenance, and integrates all required systems including fuel, exhaust, ventilation, fire suppression, and electrical connections.
Design Considerations
Key Engineering Challenges
Ventilation Calculation
Generator room must supply sufficient combustion air and remove heat from engine cooling. Inadequate ventilation causes overheating and derating.
Exhaust System Design
Exhaust must be routed to atmosphere without back pressure exceeding manufacturer limits. Flexible connections, expansion joints, and support required.
Fuel System Safety
Fuel storage, piping, and day tanks must comply with fire codes. Bunding, leak detection, and fire-rated construction required.
Fire Suppression
Generator rooms typically require automatic fire suppression systems. Gas suppression or sprinklers depending on local codes.
Structural Requirements
Floor must support generator weight and dynamic loads. Anti-vibration mounting requires adequate structural depth and reinforcement.
Maintenance Access
Room must allow safe access for routine maintenance, oil changes, filter replacement, and major overhauls without moving the generator.
Component Overview
System Architecture
A complete generator room installation integrates structural elements, ventilation, exhaust, fuel system, fire suppression, acoustic treatment, and electrical connections.
01
Structural Base & Anti-Vibration
Reinforced concrete inertia base or steel frame with anti-vibration mounts to support generator and isolate vibration.
02
Ventilation System
Inlet and outlet louvres, fans, and ductwork sized for combustion air and heat removal requirements.
03
Exhaust System
Exhaust pipe, flexible bellows, silencer, and roof/wall penetration with fire-rated sealing.
04
Fuel System
Day tank, main storage tank, fuel pump, filters, level gauges, and leak detection within bunded containment.
05
Fire Suppression System
Automatic gas or water suppression system with heat/smoke detectors and manual activation.
06
Acoustic Treatment
Acoustic lining on walls and ceiling, acoustic baffles on ventilation openings, and sealed cable/pipe penetrations.
Application Contexts
Deployment Scenarios
New Building Construction
Generator room designed and built during construction phase with full coordination with structural, MEP, and fire protection teams.
Building Retrofit
Existing buildings requiring generator installation need careful assessment of structural capacity, ventilation routes, and exhaust paths.
Industrial Facilities
Industrial generator rooms require additional consideration for process hazards, chemical exposure, and heavy maintenance equipment access.
Data Centers
Data center generator rooms require N+1 generator bays, fuel day tank rooms, and integration with UPS and transfer switch rooms.
Project Workflow
Implementation Steps
1
Site Survey & Assessment
Survey available space, structural capacity, ventilation routes, exhaust paths, and fuel delivery access.
2
Room Design & Engineering
Design structural base, ventilation, exhaust, fuel system, fire suppression, and acoustic treatment. Obtain permits.
3
Civil & Mechanical Works
Construct base, install ventilation, exhaust, fuel system, and fire suppression. Complete room finishes.
4
Generator Installation
Position generator on anti-vibration mounts, connect exhaust, fuel, electrical, and control systems.
5
Testing & Commissioning
Test all systems: ventilation, fuel, fire suppression, exhaust, electrical. Conduct load test and verify compliance.
Product Categories
Recommended Products
Anti-Vibration Mounting Systems
Spring and rubber anti-vibration mounts for generator bases and exhaust systems.
Ventilation Systems
Louvres, fans, and ductwork for generator room ventilation and heat removal.
Exhaust Systems
Exhaust pipes, flexible bellows, silencers, and fire-rated wall/roof penetrations.
Fuel Storage Systems
Day tanks, main storage tanks, pumps, filters, and bunded containment systems.
