EVENT POWER
Safe and Silent Power for Events and Public Activities
Outdoor events—concerts, festivals, trade shows, sporting events, and public gatherings—require temporary power that is safe, quiet, and reliable. A power failure during a live performance or public event causes immediate disruption, reputational damage, and potential safety hazards. Silent generator systems positioned away from the audience area, combined with professional temporary distribution and cable management, provide the reliable power that events demand. SolutionMall supplies complete event power solutions including silent generators, temporary distribution boards, cable ramps, and UPS systems for sensitive AV equipment.
KEY CHALLENGES
Event Power Challenges
Noise Sensitivity
Concerts, speeches, and public events require generators to be as quiet as possible. Silent generators with acoustic enclosures are essential, positioned at maximum distance from the audience.
Cable Safety in Public Areas
Power cables crossing pedestrian areas create trip and electrocution hazards. All cable crossings must use cable ramps, and all distribution equipment must be barriered from the public.
Load Variability
Event loads vary dramatically: stage power during sound check differs from full performance load. Generator must handle load swings without frequency or voltage instability.
Short Setup and Teardown Time
Event power systems must be deployed and connected quickly, often overnight. Equipment must be easy to transport, connect, and test within tight event timelines.
Sensitive AV Equipment
Professional audio and lighting equipment is sensitive to power quality. Voltage spikes, sags, and frequency variations can damage equipment or cause performance issues.
Weather Exposure
Outdoor events expose electrical equipment to rain, wind, and temperature extremes. All equipment must be IP44 or higher rated for outdoor use.
SYSTEM ARCHITECTURE

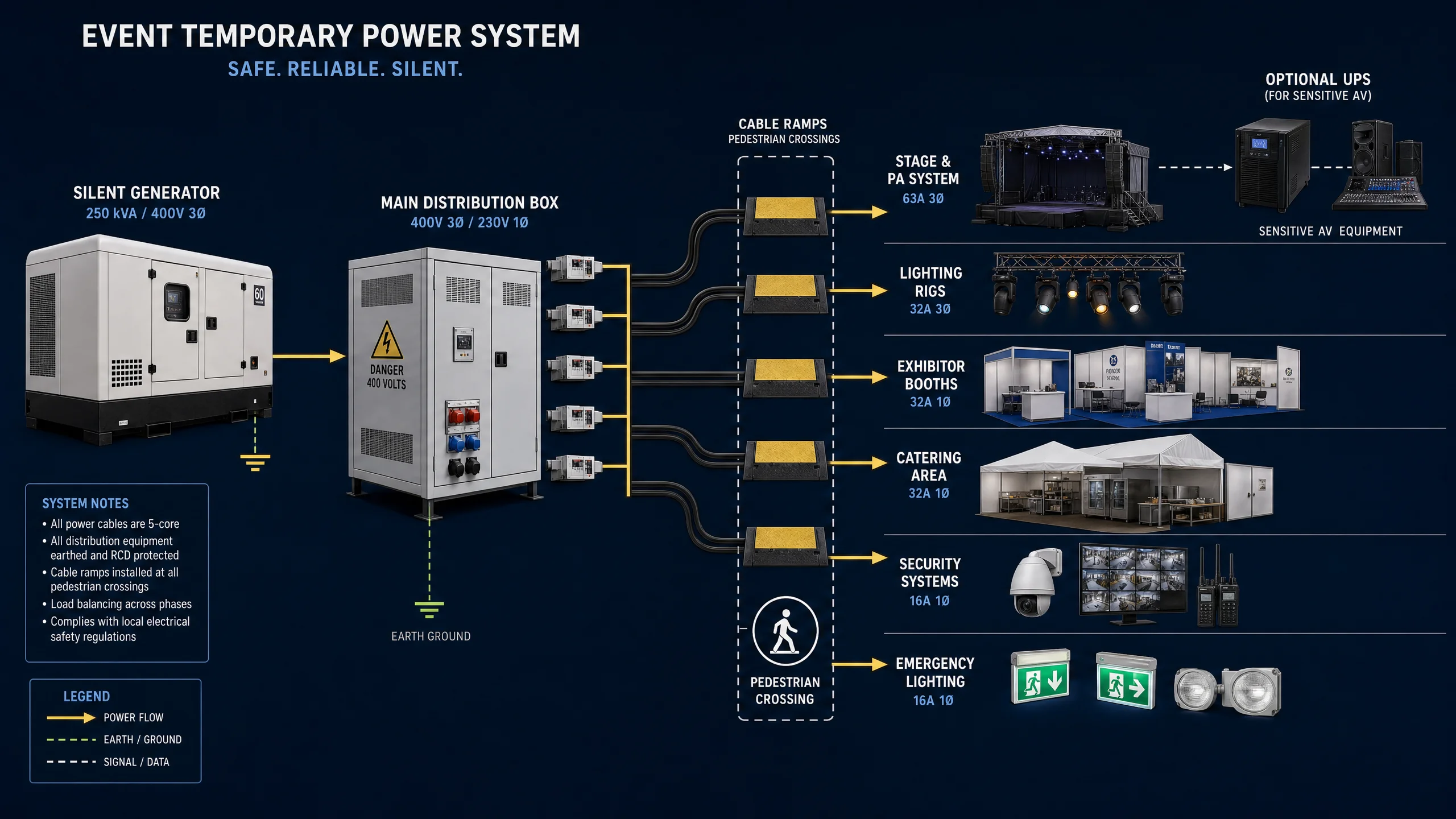

Event Temporary Power System
The event power system consists of one or more silent generators feeding a main distribution box. The main distribution box provides multiple output circuits for different event zones: stage and PA system, lighting rigs, exhibitor booths, catering area, security systems, and emergency lighting. Cable ramps protect all cable crossings at pedestrian areas. An optional UPS provides clean power for sensitive AV equipment. All distribution equipment is barriered from public access.
01
Silent Generator
50–500 kVA diesel generator in acoustic enclosure achieving 65–75 dB(A) at 1m. Provides clean, stable three-phase power for all event loads. Trailer-mounted for easy positioning.
02
Main Distribution Box (MDB)
IP44-rated outdoor distribution box with main breaker, RCD protection, and multiple output circuits for different event zones. 63A, 32A, and 16A outlets for different load classes.
03
Cable Ramp
Heavy-duty rubber cable ramps for pedestrian crossings. Multiple channel configurations for different cable sizes. Bright yellow color for visibility and safety.
04
UPS for AV Equipment
Online double-conversion UPS providing clean, stable power for sensitive audio and lighting control equipment. Eliminates generator noise and transients from AV power supply.
05
Safety Barriers
Crowd control barriers around all generator and distribution equipment. Prevents unauthorized access and protects public from electrical hazards.
06
Temporary Lighting
LED string lights, work lights, and emergency lighting for event areas, backstage, and emergency egress routes.
DEPLOYMENT SCENARIOS
Event Power Applications
Concerts and Music Festivals
High-power systems for stages, PA systems, and lighting rigs. Multiple generators for large festivals with redundancy for uninterrupted performance.
Trade Shows and Exhibitions
Power for exhibitor booths, display lighting, AV presentations, and catering. Individual metered circuits per exhibitor for billing and load management.
Outdoor Sporting Events
Power for scoreboards, PA systems, timing equipment, hospitality areas, and emergency services. Reliable power for multi-day events.
Public Celebrations and Fairs
Power for rides, food stalls, entertainment stages, and public lighting. Safety-focused distribution with RCD protection on all circuits.
IMPLEMENTATION STEPS
Event Power System Setup
1
Event Load Assessment
Obtain power requirements from all event suppliers: stage production, lighting, catering, exhibitors, and security. Calculate total load and peak demand.
2
Generator and Distribution Sizing
Size generator at 125% of peak demand. Design distribution layout with separate circuits for each event zone. Plan cable routes to minimize crossings.
3
Site Survey and Cable Route Planning
Visit event site to plan generator positioning (maximum distance from audience), cable routes, distribution box locations, and cable ramp positions.
4
Equipment Delivery and Setup
Deliver and position generator, distribution boxes, cable ramps, and barriers. Connect all circuits and label clearly. Install safety barriers around all electrical equipment.
5
Pre-Event Testing
Power up all circuits and test each load before event opens. Verify RCD protection, check all outlet voltages, and confirm generator automatic shutdown alarms.
6
Event Support and Monitoring
Provide on-site electrical support during event. Monitor generator fuel level, load, and temperature. Have spare fuel and basic spare parts available.
RECOMMENDED PRODUCTS
Products for Event Power
Silent Generator 50–500 kVA
Acoustic-enclosed diesel generators for events. 65–75 dB(A) at 1m, trailer-mounted, three-phase output, and clean power quality for AV equipment.
Outdoor Distribution Box IP44
Weatherproof temporary distribution boxes for events. Multiple outlet types, RCD protection, and lockable enclosure. Available in 63A, 125A, and 250A configurations.
Event Cable Ramp
Heavy-duty rubber cable ramps for pedestrian crossings. Multiple channel configurations, bright yellow color, and stackable for easy transport.
Online UPS for AV Equipment
Double-conversion UPS for sensitive audio and lighting control equipment. Eliminates generator noise and provides clean, stable power.
